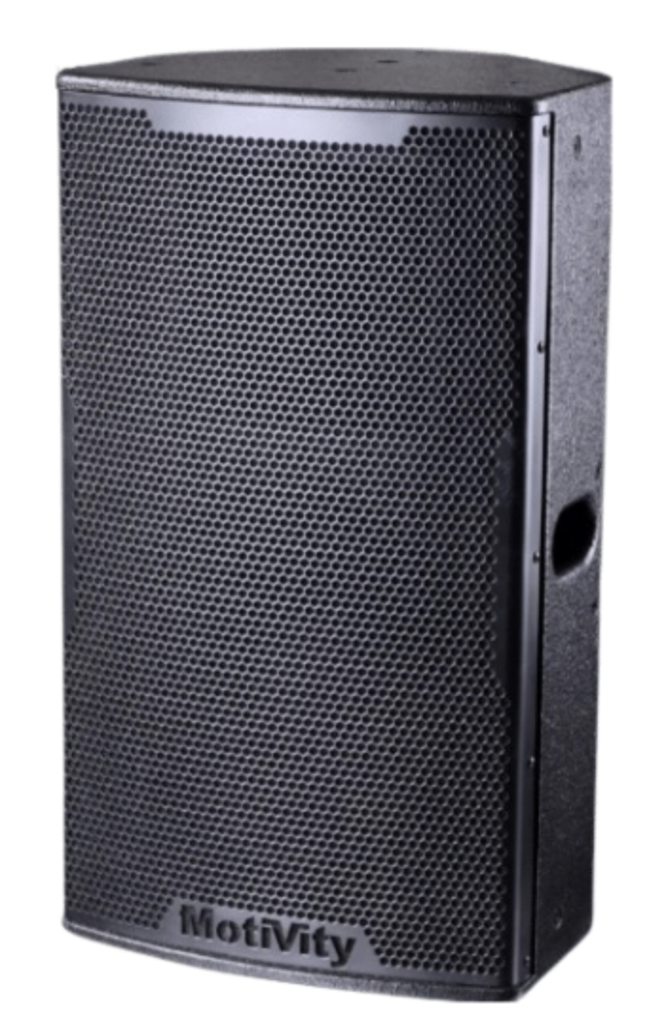

Motivity 12' two-way bass-reflex enclosure designed for professional audio use

TECHNICAL SPECIFICATION

System Type: 2-unit 2-unit bass reflex

Rated Power: 450W

Maximum Power: 900W Peak Power: 1800W

Nominal Impedance: 8 OHMS

Recommend Amplifier Rated Output Power: 500W-650W@8 OHMS

Nominal Sensitivity(1W@1m): 97dB Max. SPL: 124dB@450w (126dB@900w)

Coverage: 90°H×70°V

Frequency Bandwidth: 58Hz-20KHz Crossover

Mode: Passive

Transducer Configuration: Low frequency driver 12″ (305mm unit 75mm voice coil ) ×1 High frequency driver 1.7″ (44mm voice coil ) ×1

Connector: SPEAKON NL4×2 PIN1+/2+POS. PIN1-/2-NEG.

Cabinet Material: 18 mm(0.7″) high quality plywood

Color: The default is black, other colors can be customized.

Product Dimension: W375 mm*D340 mmH656mm

Weight: 22 kg
