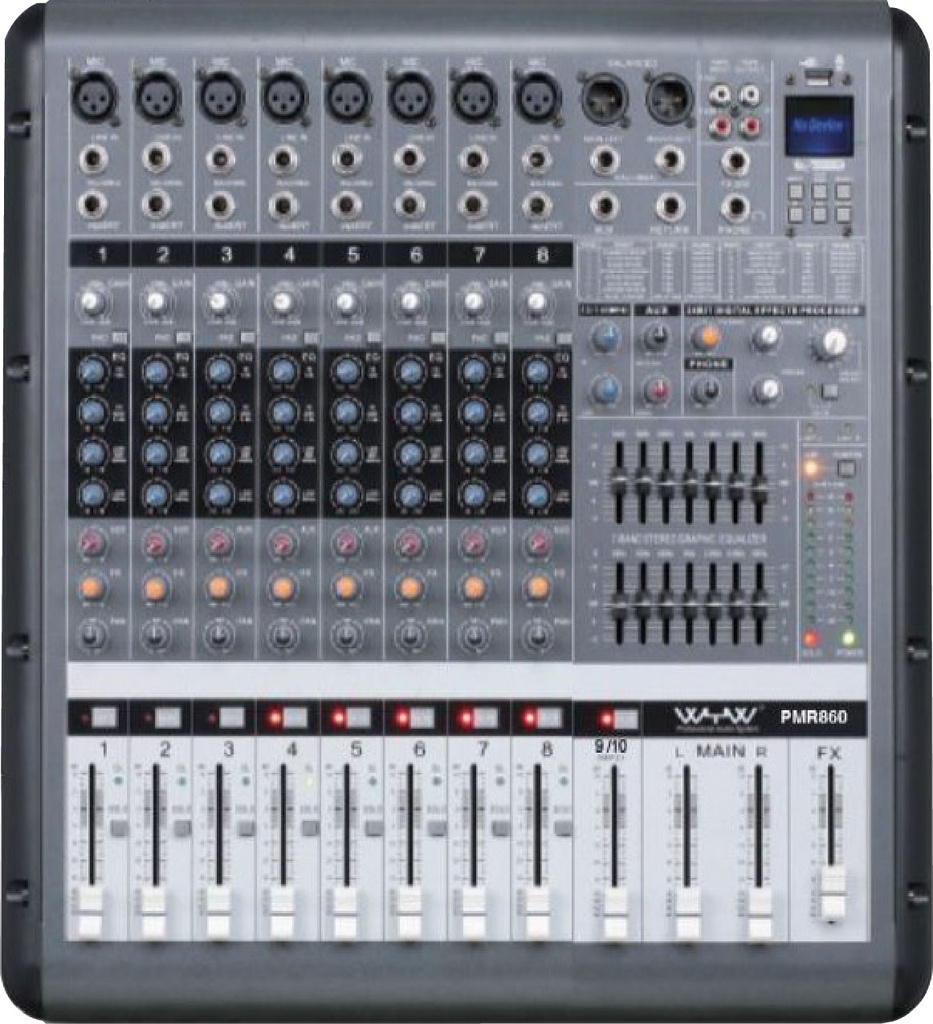

WYW Powerd Mixer
●MP3 input with recording function
●6/8/12/16 mono + 1stereo channels input
●4 band channel EQ
●1 Aux send, 1Aux return
●60mm logarithmic taper fader
●24Bit DSP effect
●2*7 band EQ on main board
●2 Stereo main output
●+48V phantom power
●2*380W 4Ω
Product type Power Amplifiers Type PA Power Amplifiers Rated ouput power (1kHz @ 2 Ohms) 2 x 800 W Rated ouput power (1kHz @ 4 Ohms) 2 x 650 W Rated ouput power (1kHz @ 8 Ohms) 2 x 450 W Rated ouput power (1 kHz @ 4 Ohms, bridged) 1600 W Rated ouput power (1kHz @ 8 Ohms, bridged) 1300 W Output circuitry Class H Frequency response 20 - 20000 Total Harmonic Distortion (THD) < 0.1 % Signal-to-noise ratio 106 dB Damping factor (20Hz-500Hz @8ohm) >400 Crosstalk >80 dB Gain 39 dB Input sensitivity 0.775 V Protection circuits clip limiter, DC protection, Short circuit, thermal overload Controls 2 x volume, bridge/stereo mode selector, ground lift, mains switch (on/off) Indicators level, Limit, Power, Protect (protection circuit engaged), Signal Loudspeaker outputs 2 Speaker output connections Speakon compatible, Terminal posts Cooling highly efficient, automatic Power supply transformer Operating voltage 230 V AC / 50-60 Hz Weight 15,9 kg Features Volex mains socket
