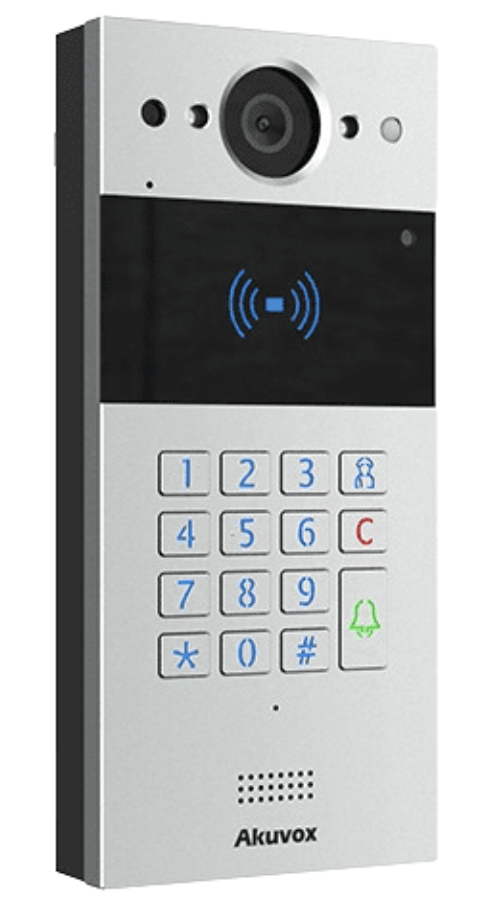

Akuvox on-wall palm-size door phone certified for outdoor usege
● Wide-angle camera: 110º (H), 58º (V).
● PoE (IEEE802.3af, Power-over-Ethernet).
● Vandal resistant body with numeric keypad.
● Complies with SIP standard for easy integration in every SIP capable PBXes.
● Two-way audio communication over IP networks with Echo Cancellation feature.
● Complies with ONVIF standard for easy integration with any network surveillance system.
Physical & Power
- Front panel: Aluminum alloy
- Camera: 2M pixels, automatic lighting
- Numeric keypad with extra buttons
- Light sensor: Support
- Infrared sensor: Support
- Wiegand port: Support
- RS485 port: Support
- RF card reader: 13. 56MHz & 125kHz
- Relays out: 2
- Inputs: 2
- Microphone: -40dB
- Speaker: 42Ω / 3W
- Ethernet port: RJ45, 10/100Mbps adaptive
- 802.3af Power- over - Ethernet
- 12V DC connector (if not using PoE)
- Water-proof & Dust- proof: IP65
- Installation: Flush-mounted or Wall- mounted
- Flush-mounted DIM: 226x108x52mm
- Wall- mounted DIM: 185x85x29mm
- Working Humidity: 10 ~ 90%
- Working Temperature: -30°C ~ +65°C
- Storage Temperature: - 40°C~ + 70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ, G.729
- Broadband audio codec: G.722
- DTMF: In- band, out-of-band DTMF (RFC2833), SIP Info
- Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/3”, CMOS
- Pixels: CIF, QCIF, VGA, 4CIF, 720p
- Video codec: H.265&H.264
- Video resolution: up to 1080p
- Max. image transfer rate: 720p -30fps
- Viewing angle: 110°(H) / 58°(V)
- High intensity IR LEDs for picture lighting during dark hours with internal light sensor
- Compatible to 3rd- Party video components, e.g. NVRs
Door Entry Feature
- Relays controlled individually by DTMF tones
- Camera permanently operational
- Auto- night mode with LED illumination
- White balance: auto
- Minimum illumination: 0.1LUX
Networking & Protocol
- Protocols support: IPv4, HTTP,HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP. ARP
Deployment & Maintenance
- Auto- Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
Application Scenario
- Office doorphone with on-site or hosted IP-PBX
- Remote site entry over Internet
- Apartment/flat intercom with door access control
